使用 ThinkPHP 连接 KaiwuDB
ThinkPHP 是一个免费开源，快速、简单的面向对象的轻量级 PHP 开发框架，是为了敏捷 WEB 应用开发和简化企业应用开发而诞生的。
本示例演示了如何通过 ThinkPHP 连接 KaiwuDB，执行 SQL 语句。
前提条件
- 安装和运行 KaiwuDB 数据库、配置数据库认证方式、创建数据库。
- 创建具有表级别及以上操作权限的用户。
- 安装 ThinkPHP。
配置示例
安装 PHP
安装 PHP：
sudo apt install php7.4安装 PHP-PGSQL 扩展：
sudo apt install php-pgsql修改
/etc/php/7.4/mods-available/php.ini文件，启用扩展：extension=pdo.so
安装和配置 Apache
安装 Apache：
sudo apt install apache2禁用 Apache 默认站点配置。Ubuntu 安装的 Apache 中可能存在默认站点配置
000-default.conf，可以通过以下命令禁用：sudo a2dissite 000-default创建
thinkphp6.conf配置文件：sudo vim /etc/apache2/sites-available/thinkphp6.conf在
thinkphp6.conf配置文件中启用新站点配置：<VirtualHost *:80> ServerAdmin webmaster@localhost ServerName yourdomain.com ServerAlias www.yourdomain.com DocumentRoot /root/test/thinkphp-test/tp6/public <Directory "/root/test/thinkphp-test/tp6/public"> AllowOverride All Require all granted </Directory> ErrorLog ${APACHE_LOG_DIR}/error.log CustomLog ${APACHE_LOG_DIR}/access.log combined </VirtualHost>检查 Apache URL 重写模块是否已启用：
sudo a2query -m rewrite如未启用，执行以下命令：
sudo a2enmod rewrite sudo systemctl reload apache2启动 Apache 服务：
sudo systemctl start apache2
使用第三方 TP6 项目并引入配置文件
克隆 TP6 项目：
git clone https://gitee.com/ruoshuiyx/tp6.git修改
.env配置文件中的数据库设置：[DATABASE] TYPE=kwdb HOSTNAME= <database_ip> DATABASE= defaultdb USERNAME= <user_name> PASSWORD= <password> HOSTPORT= 26800 CHARSET= utf8 DEBUG= true PREFIX= tp_在
app/admin/service/Backup.php文件中添加以下函数：private static function _show_status_stmt($table = null) { if (is_null($table)) { return "SELECT t.*, c.* FROM information_schema.tables AS t JOIN kwdb_internal.tables AS c ON t.table_catalog = c.database_name AND t.table_schema = c.schema_name AND t.table_name = c.name WHERE t.table_schema NOT IN ('information_schema', 'pg_catalog', 'crdb_internal') ORDER BY t.table_catalog, t.table_schema, t.table_name;"; } else { return "SELECT t.*, c.* FROM information_schema.tables AS t JOIN kwdb_internal.tables AS c ON t.table_catalog = c.database_name AND t.table_schema = c.schema_name AND t.table_name = c.name WHERE t.table_schema NOT IN ('information_schema', 'pg_catalog', 'crdb_internal') AND t.table_name = '" . $table . "' ORDER BY t.table_catalog, t.table_schema, t.table_name;"; } }修改
app/admin/service/Backup.php文件中的 dataList 接口：public function dataList($table = null, $type = 1) { $db = self::connect(); $stmt = self::_show_status_stmt($table); $list = $db->query($stmt); return array_map('array_change_key_case', $list); }修改
app/common.php文件, 将$tags = explode(',', $info[$v['field']]);修改为$tags = explode(',', $info[$v['field']][0]);。修改
app/common/model/Admin.php文件，注释掉open_code代码块：public static function checkLogin() { // 查找所有系统设置表数据 $system = \app\common\model\System::find(1); $username = Request::param("username"); $password = Request::param("password"); // $open_code = $system['code']; // if($open_code){ // $code = Request::param("vercode"); // if(!captcha_check($code)){ // $data = ['error' => '1', 'msg' => '验证码错误']; // return json($data); // } // } // } $result = self::where(['username' => $username, 'password' => md5($password)])->find(); ...修改
config/database.php配置文件，配置数据库连接：<?php return [ // 默认使用的数据库连接配置 'default' => env('database.driver', 'kwdb'), // 自定义时间查询规则 'time_query_rule' => [], // 自动写入时间戳字段 // true为自动识别类型 false关闭 // 字符串则明确指定时间字段类型 支持 int timestamp datetime date 'auto_timestamp' => true, // 时间字段取出后的默认时间格式 'datetime_format' => 'Y-m-d H:i:s', // 时间字段配置 配置格式：create_time,update_time 'datetime_field' => '', // 数据库连接配置信息 'connections' => [ 'kwdb' => [ // 数据库类型 'type' => env('database.type', 'kwdb'), // 服务器地址 'hostname' => env('database.hostname', '10.110.10.155'), // 数据库名 'database' => env('database.database', 'defaultdb'), // 用户名 'username' => env('database.username', 'u1'), // 密码 'password' => env('database.password', 'Znbase@123'), // 端口 'hostport' => env('database.hostport', '26800'), // 数据库连接参数 'params' => [], // 数据库编码默认采用utf8 'charset' => env('database.charset', 'utf8'), // 数据库表前缀 'prefix' => env('database.prefix', ''), // 数据库部署方式:0 集中式(单一服务器),1 分布式(主从服务器) 'deploy' => 0, // 数据库读写是否分离 主从式有效 'rw_separate' => false, // 读写分离后 主服务器数量 'master_num' => 1, // 指定从服务器序号 'slave_no' => '', // 是否严格检查字段是否存在 'fields_strict' => true, // 是否需要断线重连 'break_reconnect' => false, // 监听SQL 'trigger_sql' => env('app_debug', true), // 开启字段缓存 'fields_cache' => false, ], // 更多的数据库配置信息 ], ];修改
public/index.php文件，引入kwdb.php：require __DIR__ . '/builder/kwdb.php'; require __DIR__ . '/connector/kwdb.php';在
tp6/public/builder目录下创建kwdb.php文件：<?php // +---------------------------------------------------------------------- // | ThinkPHP [ WE CAN DO IT JUST THINK ] // +---------------------------------------------------------------------- // | Copyright (c) 2006~2019 http://thinkphp.cn All rights reserved. // +---------------------------------------------------------------------- // | Licensed ( http://www.apache.org/licenses/LICENSE-2.0 ) // +---------------------------------------------------------------------- // | Author: liu21st <liu21st@gmail.com> // +---------------------------------------------------------------------- declare (strict_types = 1); namespace think\db\builder; use think\db\Builder; use think\db\Query; use think\db\Raw; /** * kwdb数据库驱动 */ class kwdb extends Builder { /** * INSERT SQL表达式 * @var string */ protected $insertSql = 'INSERT INTO %TABLE% (%FIELD%) VALUES (%DATA%) %COMMENT%'; /** * INSERT ALL SQL表达式 * @var string */ protected $insertAllSql = 'INSERT INTO %TABLE% (%FIELD%) %DATA% %COMMENT%'; /** * limit分析 * @access protected * @param Query $query 查询对象 * @param mixed $limit * @return string */ public function parseLimit(Query $query, string $limit): string { $limitStr = ''; if (!empty($limit)) { $limit = explode(',', $limit); if (count($limit) > 1) { $limitStr .= ' LIMIT ' . $limit[1] . ' OFFSET ' . $limit[0] . ' '; } else { $limitStr .= ' LIMIT ' . $limit[0] . ' '; } } return $limitStr; } /** * 字段和表名处理 * @access public * @param Query $query 查询对象 * @param mixed $key 字段名 * @param bool $strict 严格检测 * @return string */ public function parseKey(Query $query, $key, bool $strict = false): string { if (is_int($key)) { return (string) $key; } elseif ($key instanceof Raw) { return $this->parseRaw($query, $key); } $key = trim($key); if (strpos($key, '->') && false === strpos($key, '(')) { // JSON字段支持 [$field, $name] = explode('->', $key); $key = '"' . $field . '"' . '->>\'' . $name . '\''; } elseif (strpos($key, '.')) { [$table, $key] = explode('.', $key, 2); $alias = $query->getOptions('alias'); if ('__TABLE__' == $table) { $table = $query->getOptions('table'); $table = is_array($table) ? array_shift($table) : $table; } if (isset($alias[$table])) { $table = $alias[$table]; } if ('*' != $key && !preg_match('/[,\"\*\(\).\s]/', $key)) { $key = '"' . $key . '"'; } } if (isset($table)) { $key = $table . '.' . $key; } return $key; } /** * 随机排序 * @access protected * @param Query $query 查询对象 * @return string */ protected function parseRand(Query $query): string { return 'RANDOM()'; } }在
tp6/public/connector目录下创建kwdb.php文件：<?php // +---------------------------------------------------------------------- // | ThinkPHP [ WE CAN DO IT JUST THINK ] // +---------------------------------------------------------------------- // | Copyright (c) 2006~2019 http://thinkphp.cn All rights reserved. // +---------------------------------------------------------------------- // | Licensed ( http://www.apache.org/licenses/LICENSE-2.0 ) // +---------------------------------------------------------------------- // | Author: liu21st <liu21st@gmail.com> // +---------------------------------------------------------------------- namespace think\db\connector; use PDO; use think\db\PDOConnection; /** * kwdb数据库驱动 */ class kwdb extends PDOConnection { /** * 默认PDO连接参数 * @var array */ protected $params = [ PDO::ATTR_CASE => PDO::CASE_NATURAL, PDO::ATTR_ERRMODE => PDO::ERRMODE_EXCEPTION, PDO::ATTR_ORACLE_NULLS => PDO::NULL_NATURAL, PDO::ATTR_STRINGIFY_FETCHES => false, ]; /** * 解析pdo连接的dsn信息 * @access protected * @param array $config 连接信息 * @return string */ protected function parseDsn(array $config): string { $dsn = 'pgsql:dbname=' . $config['database'] . ';host=' . $config['hostname']; if (!empty($config['hostport'])) { $dsn .= ';port=' . $config['hostport']; } return $dsn; } /** * 取得数据表的字段信息 * @access public * @param string $tableName * @return array */ public function getFields(string $tableName): array { [$tableName] = explode(' ', $tableName); // $sql = 'select fields_name as "field",fields_type as "type",fields_not_null as "null",fields_key_name as "key",fields_default as "default",fields_default as "extra" from table_msg(\'' . $tableName . '\');'; // $sql = "SELECT pg_catalog.pg_attribute.attname AS field, pg_catalog.pg_attribute.attnum AS fields_index, pg_catalog.pgsql_type ( pg_type.typname::VARCHAR ) AS type,CASE WHEN ( pg_catalog.pg_attribute.atttypmod - 4 > 0 ) THEN pg_catalog.pg_attribute.atttypmod - 4 ELSE NULL END AS fields_length,CASE WHEN pg_catalog.pg_attribute.attnotnull THEN 'NOT NULL' ELSE '' END AS null, pg_catalog.pg_attrdef.adsrc AS default, pg_catalog.pg_attrdef.adsrc AS extra, pg_catalog.pg_description.description AS fields_comment,COALESCE(( SELECT CONSTRAINT_NAME FROM information_schema.key_column_usage WHERE table_schema = 'public' AND TABLE_NAME = '". $tableName ."' AND COLUMN_NAME = pg_catalog.pg_attribute.attname),'') AS key FROM pg_catalog.pg_attribute INNER JOIN pg_catalog.pg_class ON pg_catalog.pg_attribute.attrelid = pg_catalog.pg_class.OID INNER JOIN pg_catalog.pg_type ON pg_catalog.pg_attribute.atttypid = pg_type.OID LEFT OUTER JOIN pg_catalog.pg_attrdef ON pg_catalog.pg_attrdef.adrelid = pg_catalog.pg_class.OID AND pg_catalog.pg_attrdef.adnum = pg_catalog.pg_attribute.attnum LEFT OUTER JOIN pg_catalog.pg_description ON pg_catalog.pg_description.objoid = pg_catalog.pg_class.OID AND pg_catalog.pg_description.objsubid = pg_catalog.pg_attribute.attnum WHERE pg_catalog.pg_attribute.attnum > 0 AND pg_catalog.pg_attribute.attisdropped <> 't' AND pg_catalog.pg_class.OID=(SELECT pg_class.OID FROM pg_class INNER JOIN pg_namespace ON ( pg_class.relnamespace = pg_namespace.OID AND LOWER (pg_namespace.nspname) = 'public') WHERE pg_class.relname = '". $tableName ."') ORDER BY pg_catalog.pg_attribute.attnum;"; $sql = "SELECT c.column_name AS field, c.ordinal_position AS fields_index, c.data_type AS type, CASE WHEN c.character_maximum_length IS NOT NULL THEN c.character_maximum_length WHEN c.numeric_precision IS NOT NULL THEN c.numeric_precision ELSE NULL END AS fields_length, CASE WHEN c.is_nullable = 'NO' THEN 'NOT NULL' ELSE '' END AS null, c.column_default AS default, c.column_default AS extra, COALESCE( (SELECT d.description FROM pg_catalog.pg_description d JOIN pg_catalog.pg_class cl ON d.objoid = cl.oid JOIN pg_catalog.pg_namespace n ON cl.relnamespace = n.oid WHERE cl.relname = '$tableName' AND n.nspname = 'public' AND d.objsubid = c.ordinal_position), '') AS fields_comment, COALESCE( (SELECT kcu.constraint_name FROM information_schema.key_column_usage kcu WHERE kcu.table_schema = 'public' AND kcu.table_name = '$tableName' AND kcu.column_name = c.column_name), '') AS key FROM information_schema.columns c JOIN information_schema.tables t ON c.table_schema = t.table_schema AND c.table_name = t.table_name WHERE c.table_schema = 'public' AND c.table_name = '$tableName' ORDER BY c.ordinal_position;"; $pdo = $this->getPDOStatement($sql); $result = $pdo->fetchAll(PDO::FETCH_ASSOC); $info = []; if (!empty($result)) { foreach ($result as $key => $val) { $val = array_change_key_case($val); $info[$val['field']] = [ 'name' => $val['field'], 'type' => $val['type'], 'notnull' => (bool) ('' !== $val['null']), 'default' => $val['default'], 'primary' => !empty($val['key']), 'autoinc' => (0 === strpos($val['extra'], 'nextval(')), ]; } } return $this->fieldCase($info); } /** * 取得数据库的表信息 * @access public * @param string $dbName * @return array */ public function getTables(string $dbName = ''): array { $sql = "select tablename as Tables_in_test from pg_tables where schemaname ='public'"; $pdo = $this->getPDOStatement($sql); $result = $pdo->fetchAll(PDO::FETCH_ASSOC); $info = []; foreach ($result as $key => $val) { $info[$key] = current($val); } return $info; } protected function supportSavepoint(): bool { return true; } }修改项目自带的 SQL 文件，改为 KaiwuDB 支持的 SQL 语句格式。
验证数据库连接

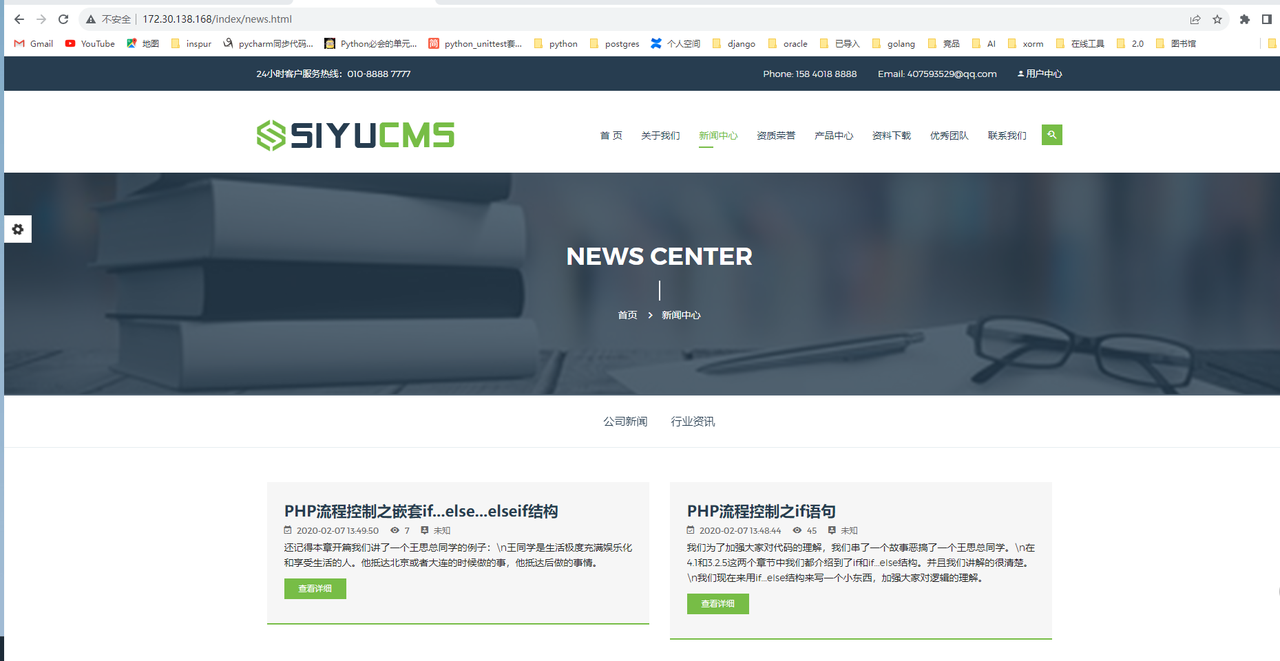

访问 Apache 服务，确保数据库连接成功并且网页能够正常访问。
